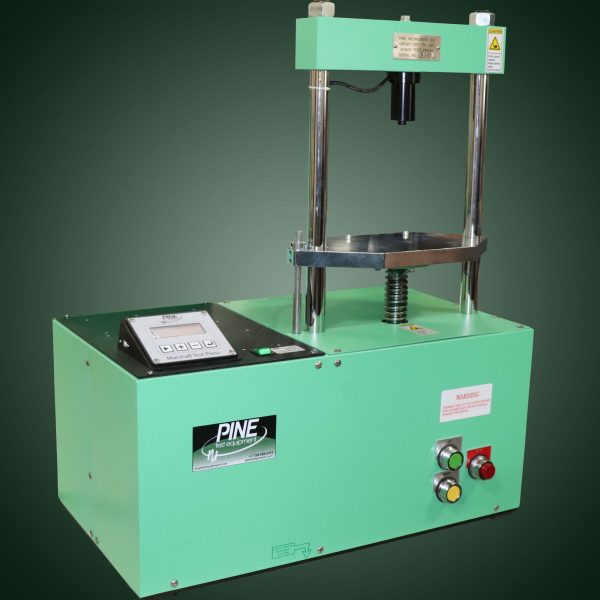

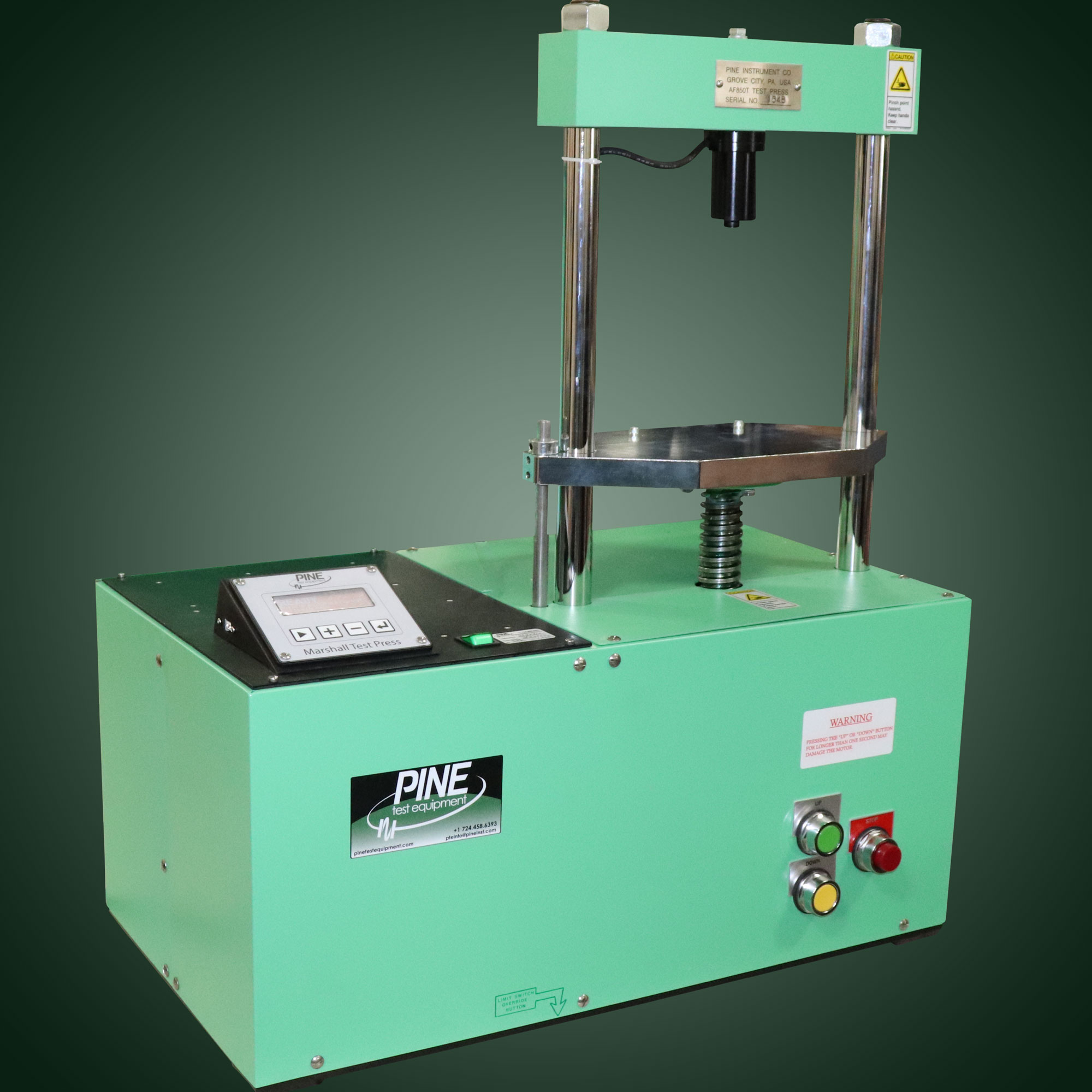

850 Digital Test Press

Part # AF850TD


Enjoy a simpler way to capture, store, and plot load frame data with Pine’s Digital Test Press.

Available Factory Direct

Email us for a quote

Category:
  • All data is captured electronically (no paper or pens).
  • All data can be transferred to a computer via a USB flash drive.
  • Includes Excel workbooks for Marshall and TSR test results.
  • Data for the last 20 tests is stored internally.
  • Peak Stability and associated Flow are displayed at the end of a test.
  • Loads from 0 to 10,000 lbs. are run on one range (no range switch).
  • Flow Resolution:  0.000244 inches (0.006 mm)
  • Stability Resolution:  0.33 lb (1.48 N)

Standards Compliance:     AASHTO T 245       AASHTO T 283      ASTM D6927

The Operation Manual:  Request a Digital Copy

Power:

120 VAC, 6 Amp, 60 Hz, 1 ph1/4 HP Motor

Shipping Weight:

Approximately 250 lbs (114 kg)

Size:

27″ L x 15″ D x 32″ H

Platen:

2″ / 50 mm per minute travel
2.75″ total travel available (limited to 3/8″)
6.5 square inches platen surface
10.75″ clearance between rods
9.5″ maximum vertical clearance
6.75″ minimum vertical clearance

Operating Temperature:

55-95 °F

Specimen Size:

4 and 6″ / 100 and 150-mm Diameter
(with the appropriate breaking head)

Data Acquisition:

Records Stability and Flow at 50 Hz.
Saves test data for the last 20 tests to internal flash memory

Output Parameters:

Format compatible with MicroSoft Excel®:  stability and flow

Results:

Records results in English, S.I., or mixed units.

Test Specification:

ASTM E-4
