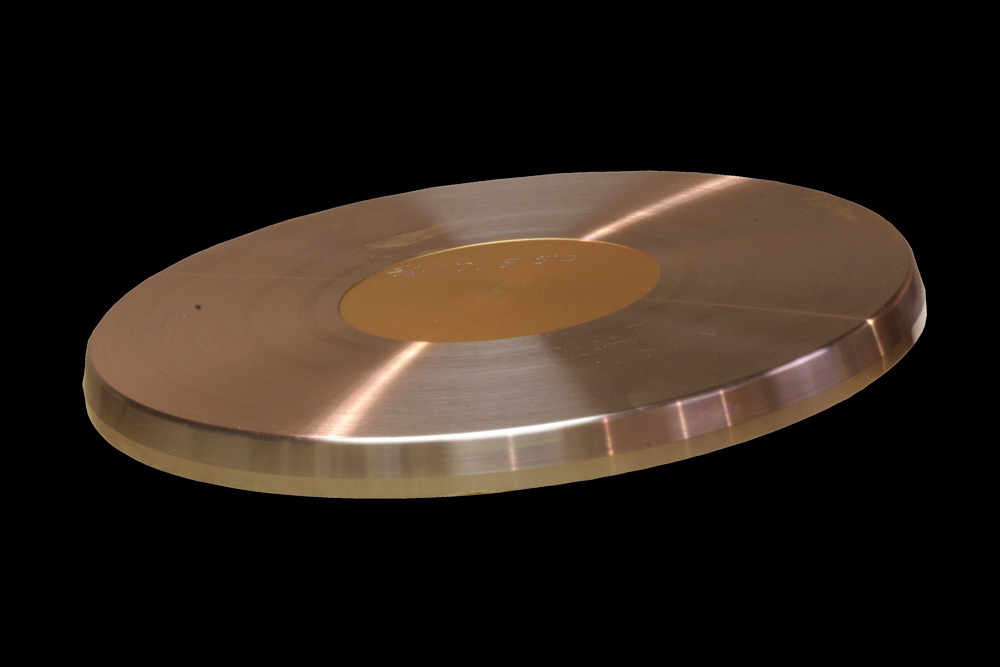

150-mm End Plates for GB1 and Top Plate for 125X

Part #ACGCM150T1

150-mm GB1 Mold Assemblies include two (2) of these end plates

150-mm 125X Mold Assemblies include one (1) of these end plates for a top plate.

The end plates are also available individually as replacement parts.

Available Factory Direct

Email us for a quote


These 150-mm Mold End Plates comprise the top and bottom end plates in a 150-mm GB1 Mold Assembly and the top plate in a 150-mm 125X Mold Assembly.

Individual plates are available to replace damaged or out-of-specification end plates.

Proper Mold Top & Base Plate Orientation

A mold plate is correctly placed in a mold when the dull spot in the center of the plate, a pocket, faces away from the asphalt material.   The beveled edge on the circumference of the plate also faces away from the asphalt material when a plate is properly positioned.

The Impact of an Improperly Oriented Mold Plate

  • Installing the mold plate incorrectly with the pocket towards the material may cause the plate to bind against the mold and reduce the amount of pressure applied to the asphalt material.   This may affect specimen density.
  • Installing the mold top plate incorrectly with the smooth face towards the ram foot may impact the angle of gyration if excess lubricant or debris are present.  This may affect specimen density.

The Purpose of the Beveled Edge

The beveled edge prevents binding between the mold plate and the mold wall when the angle of gyration is induced during compaction.

The Purpose of the Pocket

  • A pocket allows space for excess grease and debris to collect.
  • A pocket offsets the impact of a crowned ram foot or gyratory head surface.

No Pocket in Your Mold Plates?

Pockets can be machined into existing mold plates that do not have pockets.  Call +1.724.458.6393.
