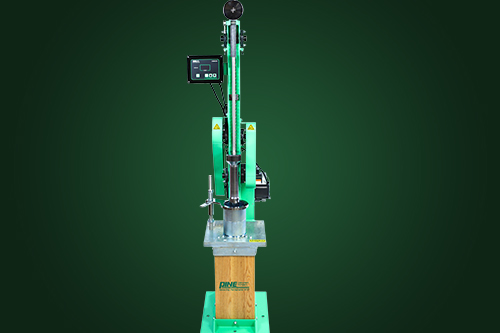

Marshall Compactor

Part # AFPMC4D for 4″ Specimens      Part # AFPMC6D for 6″ Specimens




Available Factory Direct

Email us for a quote

Category:

The Marshall Compaction method is used to select asphalt binder content at a desired density that satisfies minimum stability and range of flow values. Typically found in construction materials laboratories, the compactor is used as a tool to determine optimum asphalt content for maximum strength and minimum deformation. Pine offers two Marshall Compactor models to produce 4″ or 6″ asphalt specimens for hot mix design and performance testing in compliance with AASHTO T 245 and ATM D6926.



Durable

The Marshall Compaction process is demanding. Pine takes pride in designing and building rugged testing equipment that withstands the test of time. Decades of Pine Marshall Compactors reside in labs around the world.



Flexible

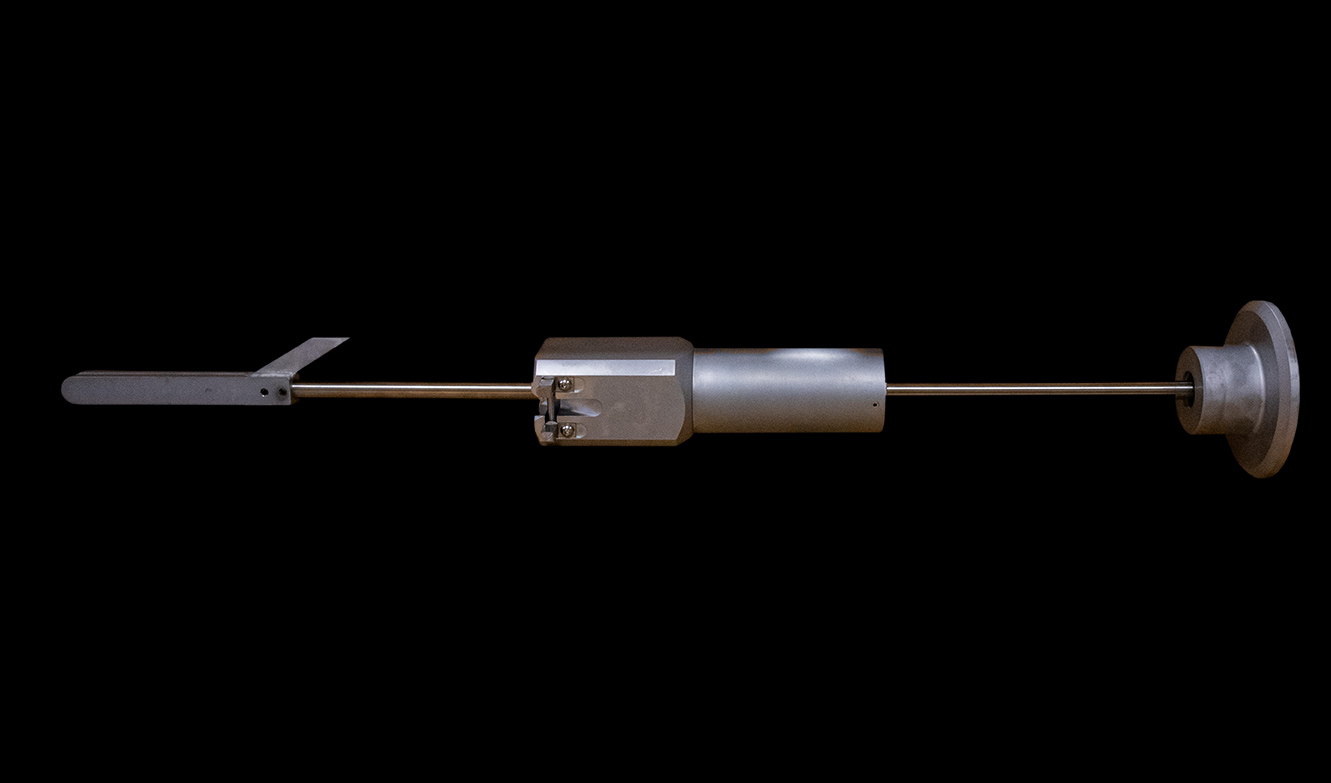

Pine’s 4″ Marshall Compactor easily adapts to make 6″ specimens with the following accessories (and easily changes back to produce 4″ specimens):



Adaptable

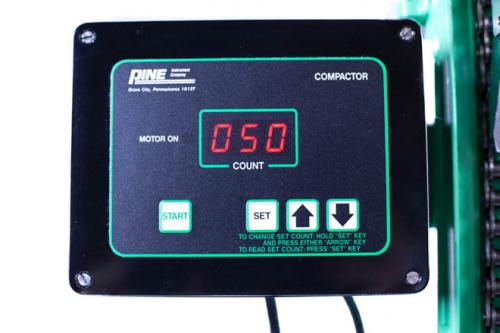

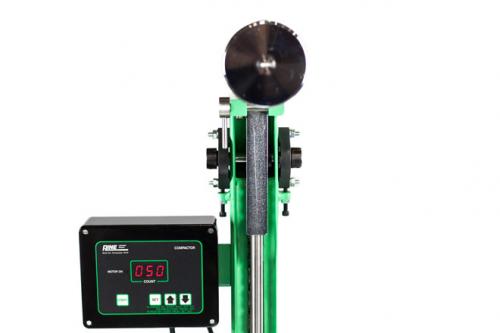

With the evolution of technology, the blow counters on Pine’s Marshall Compactor has changed. Today, the blow counters are digital.  To extend the life of the compactor, Pine developed a solution to update old counters to the current digital technology. Please use the visual guide to help determine the appropriate model for your machine.



Standards Compliance

AASHTO T 245

ASTM D6926



Size:

64″ H x 14″ W x 18″ D

Shipping Weight:

250 lbs.

Motor:

1/3 hp, 120 VAC

Power:

115 V, 60 Hz, 7 A

Part Number

Part Description

RAND10

100-mm (4") Paper disk, pack of 1000

Ensure the belt pulleys are properly tensioned.

Do Not clean the electric eye with solvent.  Solvent may damage it and render it useless.


  • Please prove you are human by selecting the Heart.
  • This field is for validation purposes and should be left unchanged.
  • Specifications

    Size:

    64″ H x 14″ W x 18″ D

    Shipping Weight:

    250 lbs.

    Motor:

    1/3 hp, 120 VAC

    Power:

    115 V, 60 Hz, 7 A

  • Accessories

  • Consumables

    Part Number

    Part Description

    RAND10

    100-mm (4") Paper disk, pack of 1000

  • Maintenance

    Ensure the belt pulleys are properly tensioned.

    Do Not clean the electric eye with solvent.  Solvent may damage it and render it useless.
