Printing Data – Pine 125X with Original Controls

“The DOT now requires that we print the compaction data directly from the gyro.  We use a Pine 125X.  Can you help me?”

Yes, we can help you.

A 3-part blog series explains related topics for a Pine 125X Superpave gyratory compactor with original controls.  Information presented represents version 1.09D of the control software.

The first article discusses the basics—the data collected, 125X file capacity, data exporting options, file types, and file naming convention.

The second blog presents saving date from a Pine 125X to a USB flash drive or a PC.

This third publication describes printing data from a Pine 125X with original controls.

Printers

Printing data directly from a Pine 125X requires a PCL-compatible printer.  The Pine 125X runs on an industrial computer that does not have Windows drivers required for printing to most printers.  Contact Pine for a printer proven to work with your gyratory compactor.

Printouts

The 125X with original controls offers three direct printout options—a Narrow Format Report via the serial port and a serial printer, a Wide Format Report through the parallel port, and a data logger report via the serial port/data logger.

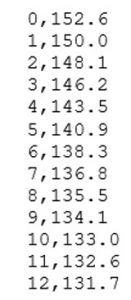

The Narrow Format Report via the serial port and a serial printer prints the gyration number and the height for that gyration separated by a comma in a column.

Pine 125X with Original Controls Narrow Report with Serial Printer

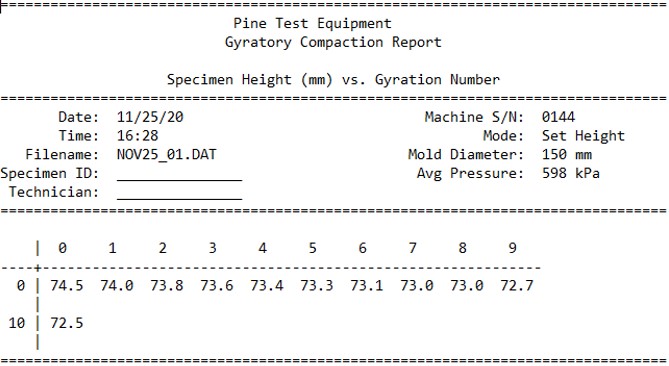

The Wide Format Report printed through the parallel port provides only height data per gyration.

Pine 125X Original Controls Wide Format Report

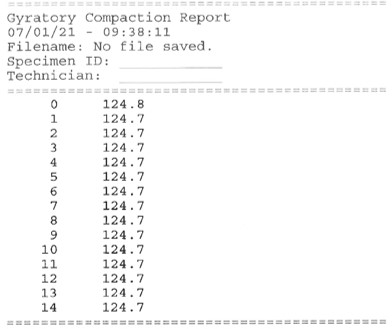

The Data Logger Report printed through the serial port / data logger / printer port provides the date and time the data was sent to the data logger and height by gyration.

Pine 125X Original Controls Data Logger Report

Menu Navigation for Printing Data

Navigate the 125X menu system using the buttons located beneath the display.

Pine 125X Control Panel

Printing Data from a Pine 125X with Original Controls

The 125X with original controls prints automatically and manually.

Printing data automatically by having a USB printer connected to the data logger via the serial port and turned on prior to the completion of compaction.

Print data manually via the serial port using the procedure outlined below.

  1. Connect a printer to the serial port and turn the printer on.
  2. Select OTHER OPTIONS in the second screen of the Main Menu.Pine 125X Original Controls Main Menu Screen 1Pine 125X Original Controls Main Menu Screen 2 - Other Options
  3. Press ENTER.Pine 125X Original Controls Other Options Menu - Send Test Data
  4. Select SEND TEST DATA.
  5. Press ENTER.Pine 125X Original Controls Send Test Data Screen
  6. Select the desired data file using the Up or Down Arrow button.
  7. Press START to print.

Print manually via the parallel port using the procedure outlined below.

  1. Connect a printer to the parallel port and turn the printer on.
  2. Select OTHER OPTIONS in the second screen of the Main Menu.Pine 125X Original Controls Main Menu Screen 1Pine 125X Original Controls Main Menu Screen 2 - Other Options

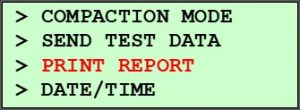

  3. Press ENTER.Pine 125X Original Controls Other Options Menu - Print Report
  4. Select PRINT REPORT.

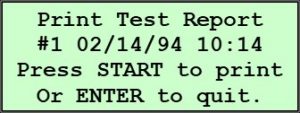

  5. Press ENTER.Pine 125X Original Controls Print Test Report Screen
  6. Select the desired data file using the Up or Down Arrow button.
  7. Press START to print.

Want to Learn More?

Review the previous blogs on Pine 125X data basics and saving Pine 125X data.

Read similar collections of articles on a G2, a GB1, a G1, and 125X with upgraded controls.

Visit our website or speak with one of our specialists at 724-458-6393.

Follow us on LinkedIn and Twitter and subscribe to our YouTube channel.
